- Uses the DSP Receiver IC AKC6951/6955 Instead of the Silicon Labs Si473x
- Direct Keyboard Entry For Frequency and MP3 Files
- 9 SW 'Band' Presets
- All Buttons Have Very Good Tactile Response (uses separate Tac Switches unlike the cheaper TIVDIO V111 model)
- Large Easy to See LCD that is readable even without backlight In use
- SW and FM Sensitivity OK Average Even With It's Limited 15 inch Telescopic Antenna (which swivels and rotates)
- SW Selectivity Wide Enough For Decent Audio (Unlike the narrow Degen DSP Pocket Sets)
- AGC Much Improved Over Most Si473X Based Receivers (Except for the tested Tecsun PL-380)
- Audio Quality (with Internal Speaker) Excellent For Size with It's Powerful Additional Amplifier and Micro 'Sub-Woofer' (see con)
- Audio Mute Function
- FM Stereo With Headphones (Records In FM Stereo As Well)
- Memory Channels Auto Sort in Frequency Order with Firmware 1.3 / Firmware 1.4 allows for user Memory Chanel Selection
- Separate Memory Channels for MW / SW and FM) (see con)
- Electronic Volume Control Allows for Fine Very Low Adjustments for Decent Night Time Use
-
Cheap Radio, Buy Quality Consumer Electronics Directly from China Suppliers:Retekess V115 FM/AM/SW Radio Receiver Bass Sound MP3 Player REC Recorder Portable Radio with Sleep Timer TF card Portable Pocket Enjoy Free Shipping Worldwide! Limited Time Sale Easy Return.
The TivdioV-115 Mod
(Retekess V-115 / Kaimeda SRW-710S / Audiomax SRW-710S)
AM FM Shortwave portable radio

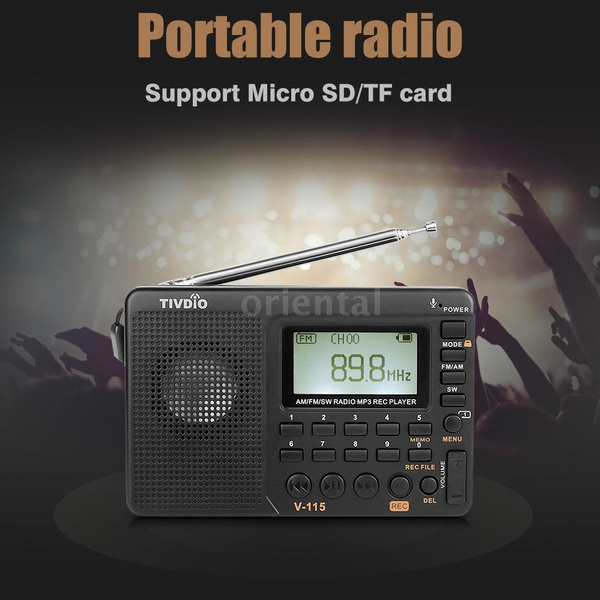

Photo of theTivdio V-115 portable radio
Many thanks to SWLing Post contributor, Tom Stiles, who notes that he’s recently posted a video review of the Tivdio V-115 on his YouTube channel. He added that the V-115 is an, “amazing little shortwave radio with many functions including MP3 recording.” Check out Tom’s review via the embedded player or YouTube link below. TIVDIO V115 Manual En - Free download as PDF File (.pdf) or read online for free. TIVDIO V115 AM/FM/SW Radio User Manual. The Tivdio V-115 Mod (Retekess V-115 / Kaimeda SRW-710S / Audiomax SRW-710S) AM FM Shortwave portable radio. Photo of the Tivdio V-115 portable radio. Portable short wave radio,4.7 x 3.1 x 0.9 in Very small, compact. TIVDIO V-116 Portable Shortwave Radio with AM FM Transistor Support Micro-SD Card AUX Input MP3 Player Speaker Alarm Clock Sleep Timer(Black and Orange): Radios & DAB: Amazon.com.au.
Portable short wave radio,4.7 x 3.1 x 0.9 in Very small, compact. It is amazing to find this much functionality in such a small package. Will fit in a man's shirt pocket;
V-115 transistor radio Bass sound with MIC recording and Line in recording Radio recording etc 3 recording mode and Simple 64kbps; Quality 96kbps ; Super 128kbps 3 recording quality
Am fm radio with Mp3 player speaker by 3.5mm AUX input and also can be used as a loudspeaker by usb cable
Built in three languages Chinese English Spanish;
Has an “AKC6951 DSP chip”
9k/10k for AM tuning increment;
Retekess V-115 portable radio with all features you need: FM/AM/SW band, and also have 3 record mode, bass sound music player that can play MP3 and WMA files. You can record your favorite music or talk shows on the radio, and can record the external sounds with the built-in microphone. This Multi-Functional Radio not only allows you to enjoy the radio, but also brings you a great fun.
Of course, there is no SSB for this low price.
AM reception seems to have low sensitivity due to the obvious small size of the ferrite antenna
FM stations do pretty well on average. Listen to one of the “major” shortwave broadcasters with a booming signal into your part of the world – you can’t beat it for this price point.
The audio that comes from this little radio is awesome! Nice bass response! Strangely enough the audio via the earphone does not seem to have all that bass. No stereo either.
The recordings are very good and do have stereo of course. So listening to MP3's or recording them can be enjoyed with stereo headphones!
Mod for your Radio!!!
MOD noise [SOLVED]
Has a high background noise or hiss like interference on SW andAM. Probaly the internal circuitry (most likely the display) wascausing this interference.
Second possibility could be the battery type of brand related(internal resistance of the battery).
Anyway, this problem is fixable:
Decouple the power/battery with a electrolitic capacitor ofaround 10uF (between 4.7...22uF will do) soldered to the batteryconnector (inside the radio).
I also grounded thespeaker (center pin is the chassis of the speaker)
connect a little wire from the metal housing of the speaker tothe ground of the pcb (I used the position next to C22). Not sureif this is needed, but it wont hurt.
! ! !RADIO MODIFICATION MODS and INFORMATION FOR YOUR TIVDIO SHORTWAVEAM FM RADIO ! ! !
Tivdio V-115Manual
V-115-English-manual.pdf
Review:
Features:
*Press the AM/FM or SW key to select the band. Highsensitivity and selectivity with excellent reception. 100 radiostation presets.
*Automatic search and store the radio station. The availablestation can be automatically numbered and stored from low to highfrequencies.
*Can play MP3 or WMA format music stored in the TF card; With3.5mm AUX input, it supports to connect the external audioequipment as a loudspeaker.
*3 recording mode: MIC recording + Line in recording + Radiorecording. Can select Simple(64kbps), Quality(96kbps) orSuper(128kbps) recording quality.
*1000mAh removable rechargeable BL-5C lithium battery ensureslong time playback. Please use an external adapter (DC 5V 0.5A,USB port) to charge the radio.
Highlights:
Earphone output function enables you to immersive inmusic world privately.
High quality speaker with bass diaphragm, the sound is clear andloud
Quick station/song selection: direct input radio frequency orsong number.
Built in 3 languages: Chinese, English, Spanish (selectable).
9K/10K selectable for AM tuning increment.
Sleep timer for up to 90 minutes.
Repeat mode: All / One / Folder.
Adjustable LCD backlight.
Note: External adapter is not included.
Specifications:
Brand Name: Retekess, Tivdio, Audiomax
Model Number: V-115
Frequency:
FM: 87-108MHz
AM: 522-1710KHz (9K), 520-1710KHz (10K)
SW: 4.75-21.85MHz
Memory: Support Micro SD/TF card, Max 32GB (not included)
Audio format: MP3, WMA
Output power: 2W
Power supply: 1000mAh BL-5C lithium battery (included)
Charging: DC 5V, Micro USB interface
Color: Black
Main Item Size: 12.0 * 8.0 * 2.2cm / 4.72 * 3.15 * 0.86in
Main Item Weight: 162g / 5.71oz
Package Size: 13.3 * 10.7 * 3.8cm / 5.23 * 4.21 * 1.49in
Package Weight: 211g / 7.42oz
Package List:
1 * Retekess V-115 Radio
1 * BL-5C Battery
1 * USB Charging Cable
1 * Hand Strip with Bracket
1 * English User Manual
